Automated VMAT gating for left-sided breast DIBH: few breathholds and small position variations
Sophie Huijskens, The Netherlands


Automated VMAT gating for left-sided breast DIBH: few breathholds and small position variations

Sophie Huijskens1, Patrick Granton1, Kimm Fremeijer1, Cynthia van Wanrooij1, Kirsten Offereins-van Harten1, Suzanne Schouwenaars-van den Beemd1, Ben Heijmen1, Joan Penninkhof1

1Erasmus MC Cancer Institute, University Medical Center Rotterdam, Department of Radiotherapy, Rotterdam, The Netherlands

Show Affiliations
Purpose or Objective

Evaluate breathhold (BH) numbers and durations, and position variations in left-sided breast DIBH treatment with automated VMAT gating steered with surface guidance imaging.

Material and Methods

All fractions of 15 included patients treated with 15x2.67Gy (n=11) or 20x2.67Gy (n=4) were analyzed. The applied VMAT plans were generated while ensuring a total estimated delivery time <200sec. Automated gating was performed with surface imaging (AlignRT, VisionRT Ltd.) in combination with the Response Module (Elekta AB, Stockholm, Sweden). If the surface region of interest moved in/out the gating tolerance (+/- 3 mm, 3̊), the beam was automatically switched on/off. Patients received BH training a few days prior to planning CT acquisition to hold their breath as long as possible in a comfortable way. Visual feedback was provided to all patients. Depending on the patient’s preference, audio coaching was also performed. During all fractions, the surface guidance system collected real time delta information with respect to the reference surface of the day, for all three orthogonal directions. We analyzed the performance of this optically steered automated VMAT gating for numbers of BHs needed to complete dose delivery, BH durations, and position variations in the three directions.

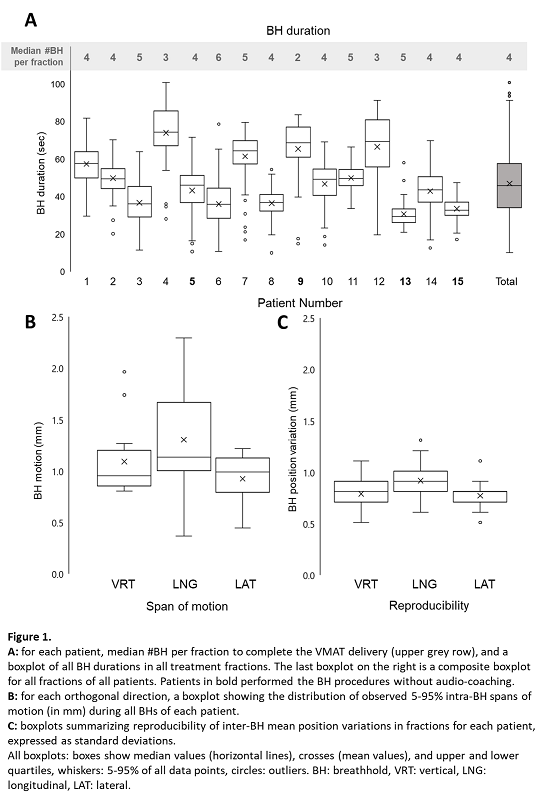

Evaluation of the in total 245 treatment fractions showed that only a median of 4 BHs per fraction (5-95% range: 2-6) were needed to complete VMAT dose delivery per fraction. The overall median BH duration with beam-on was 47 sec (patient range: 29-74 sec). In some fractions, a shorter BH was sufficient to complete total dose delivery, clarifying the large range of BH durations for some patients (Figure 1A). Over all patients, the median intra-BH 5-95% spans of motion were 1.0 mm, 1.1 mm, and 1.0 mm for vertical, longitudinal and lateral directions, respectively (Figure 1B). The span of motion range was largest for the longitudinal direction, which could be explained by some relaxation/contraction of the shoulders during BH. BH reproducibility was in most cases < 1.0 mm in each direction (Figure 1C). No differences in BH durations were found for patients who preferred to perform the BH procedure without audio-coaching (n=4, highlighted in bold in Figure 1A).


Surface guided imaging with automated VMAT gating for left-sided breast DIBH treatment proved highly efficient with a median 49 sec beam-on time per BH, resulting in a median of 4 BHs per fraction to complete VMAT delivery, while staying far below gating tolerances.
