How to design, fabricate, and validate a customized COMs-style eye plaque
PO-0258

Abstract

How to design, fabricate, and validate a customized COMs-style eye plaque
Authors:

Christopher Deufel1, Lauren Dalvin2, Jing Qian1, Birjoo Vaishnav1, Sarah McCauley Cutsinger1, Michelle Neben Wittich1, Ivy Petersen1

1Mayo Clinic, Radiation Oncology, Rochester, USA; 2Mayo Clinic, Ophthalmology, Rochester, USA

Show Affiliations
Purpose or Objective

A customized COMS-style eye plaque may provide superior dosimetric coverage compared with standard models for certain intraocular tumor locations and shapes.  This work provides a recipe for developing and validating such customized plaques. To date, the publications regarding customized COMS-style plaques have emphasized the customization results, namely the plaque design and dosimetry, and have by and large minimized their description of the methods for creating the customized plaque. The purpose of this paper is to provide a detailed description of the process for creating a customized eye plaque, that is to say a recipe that the reader can follow for the design, prototype, fabrication, and quality assurance tasks.

Material and Methods

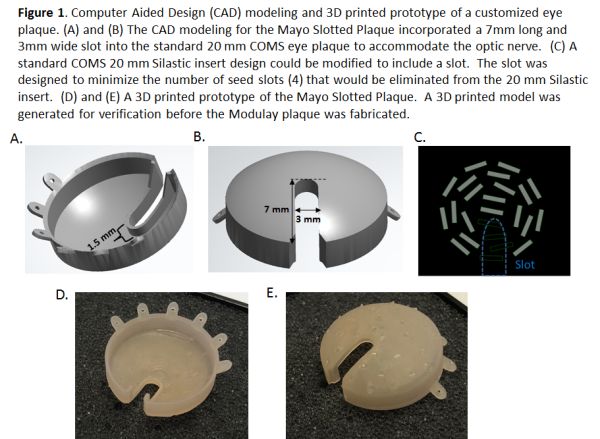

The concept-into-clinical treatment process for a customized COMS-style eye plaque begins with a CAD model design (Figure 1 A, B, C) that meets the specifications of the radiation oncologist and surgeon, as well as a heterogeneity-corrected dose prediction to model the dose distribution. Next, a 3D printed plastic prototype is created and reviewed (Figure 1 D, E).  After design approval, a Modulay plaque is commercially fabricated. Quality assurance is subsequently performed to verify the physical measurements of the Modulay and Silastic as well as dosimetric measurement of the calibration, depth dose, and dose profiles. Sterilization instructions are provided by the commercial fabricator.  This customization procedure and quality assurance is demonstrated with a narrow-slotted plaque that was recently constructed for the treatment of a circumpapillary ocular tumor.


Results

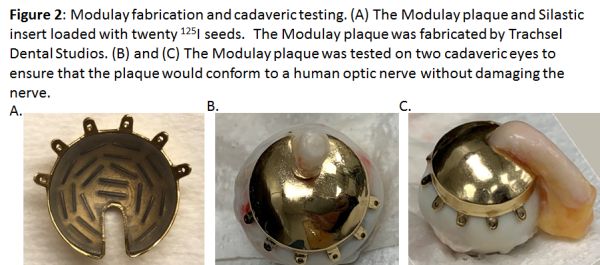

The production of a customized COMS-style eye plaque is a multistep process that requires requird approximately 30 hours and a cost of $1500.  CAD and dosimetric modeling is recommended to ensure that the design will meet the patient’s needs, and quality assurance is essential to confirm that the plaque has the proper dimensions and dose distribution. The customized narrow-slotted plaque presented herein was successfully implemented in the clinic, and provided superior dose coverage of juxtapapillary and circumpapillary tumors compared with standard or notched COMS-style plaques.  For the Mayo Slotted Plaque, the fabricated Modulay is shown in Figure 2A. The Modulay plaque was tested on two cadaveric eyes to ensure that the plaque would conform to a human optic nerve without damaging the nerve (Figures 2B,C).



Conclusion

Customized eye plaques may be used to treat intraocular tumors that cannot be adequately managed with standard models.  The procedure by which a customized COMS-style plaque may be designed, fabricated, and validated was presented along with a clinical example.
